DIAMOND SERIES TIE ROD END

(0) No Reviews yet

1 Each, 2 Per Vehicle.

Attribute	Description
Rod Thread	3/4-18
Bar Size	0.738
RH/LH	LH
Male or Female	Male
Large Dia. Taper	0.634
Small Dia. Taper	0.557
Stud Thread Size	1/2-20
Stud Length	0.625
Length Ctr. Stud to End	4.239
Config.	Bent
Greaseable	Yes
Dust Boot Included	Yes

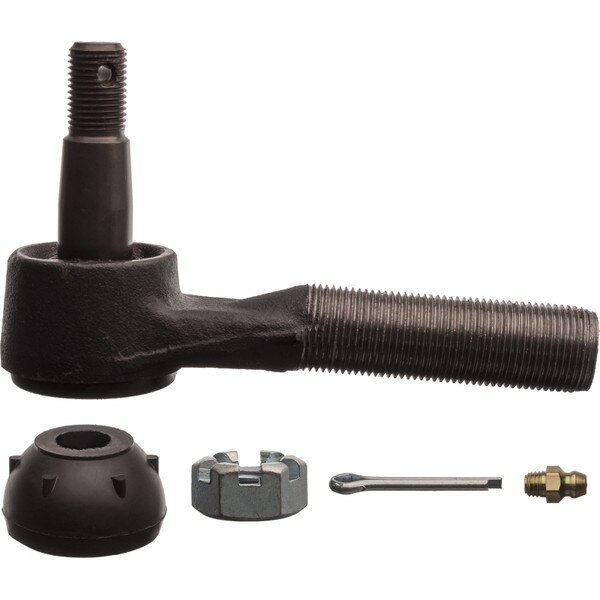

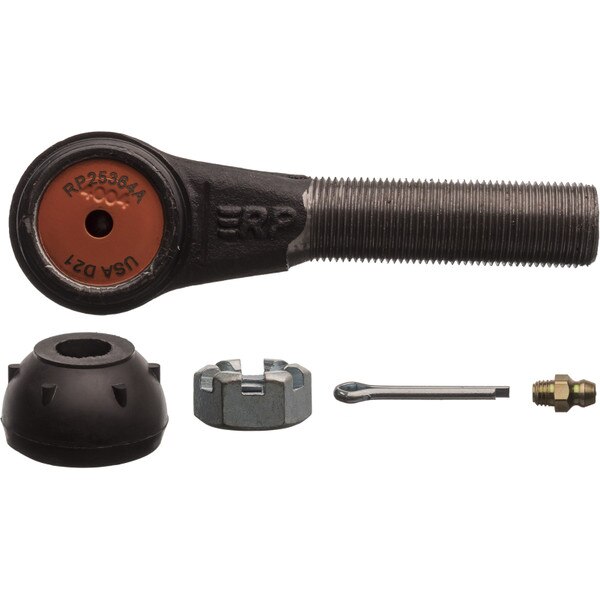

Package Contents	1 Tie Rod End, 1 Castle Nut, 1 Cotter Pin, 1 Dust Boot, 1 Grease Fitting

Year	Make	Model	Location	Comment	Application
1961	Buick	Electra	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.	RWD, Power Steering
1961	Buick	Estate Wagon	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.	Power Steering
1961	Buick	Invicta	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.	Power Steering
1961	Buick	LeSabre	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.	RWD, Power Steering
1961	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1962	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1963	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1964	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1965	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1966	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1967	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1968	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
1969	Lincoln	Continental	FRONT OUTER	This is a Rare Parts Inc. Diamond Series Part.
