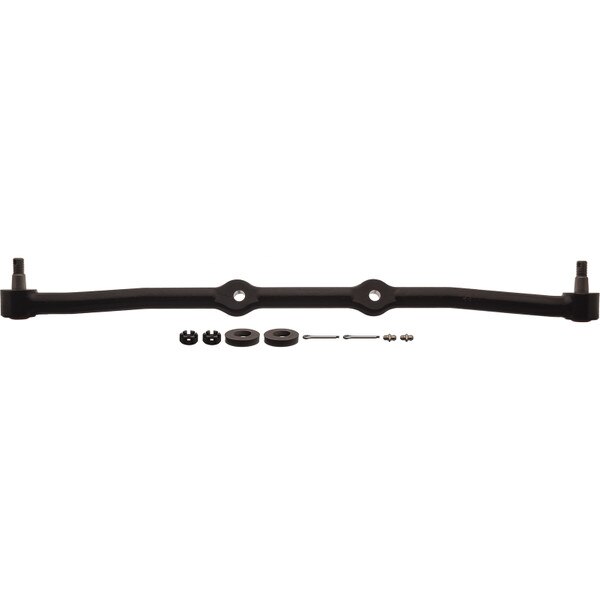

DIAMOND SERIES CENTER LINK
Details
1 Each, 1 Per Vehicle.
Full Ball Stud Pitman Arm end; Greaseable; Self aligning no bind design; Low friction
Specifications
| Attribute | Description |
|---|---|
| Shaft Diameter | 0.990 |
| Length Center to Center Studs | 26.125 |
| Number of Holes | 2 |
| Hole Sizes | 0.529 |
| Pitman Arm End to Hole 1 | 9.813 |
| Pitman Arm End to Hole 2 | 16.125 |
| Pitman Arm End to Hole 3 | - |
| Pitman Arm End to Hole 4 | - |
| Pitman Arm End to Hole 5 | - |
| Adjustable | No |
| Greaseable | Yes |
| Package Contents | 1 Center Link, 2 Castle Nuts, 2 Cotter Pins, 2 Felt Washers, 2 Grease Fittings |
Applications
| Year | Make | Model | Location |
|---|---|---|---|
| 1962 | Lincoln | Continental |
|
| 1963 | Lincoln | Continental |
|
| 1964 | Lincoln | Continental |
|
| 1965 | Lincoln | Continental |
|
| 1966 | Lincoln | Continental |
|
| 1967 | Lincoln | Continental |
|
