DIAMOND SERIES FAB SERIES TIE ROD END FORGING 1 1/4-12 RH 2.0 OFFSET
Details

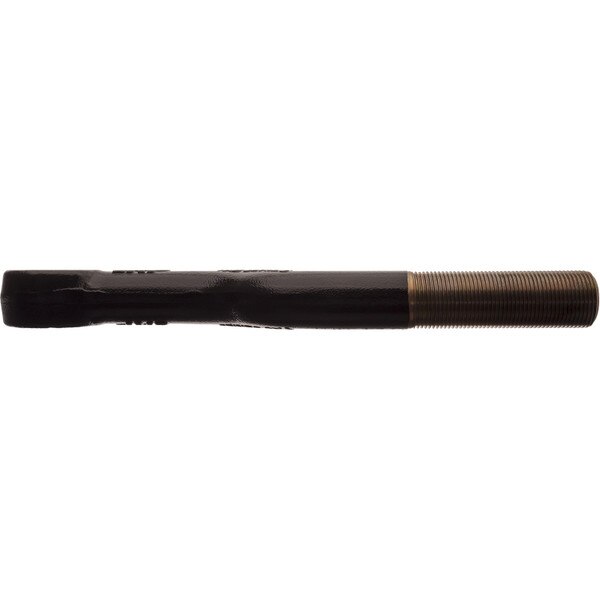

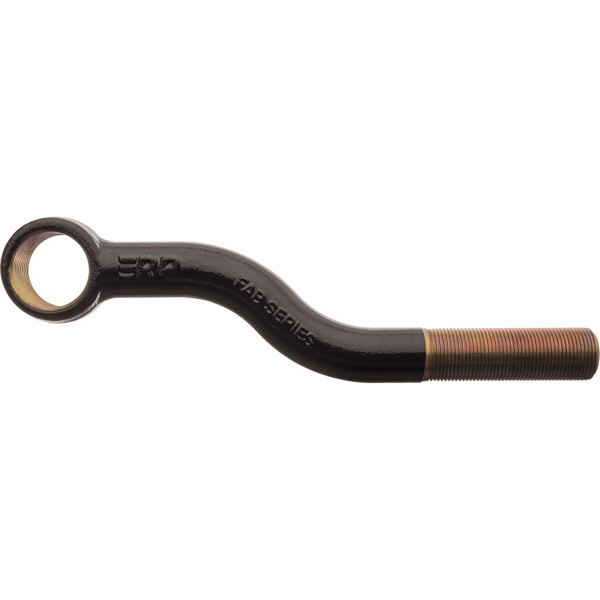

Fab Series® Rod End Forging
Patented Replaceable Coupling Cartridge System Engineered for Heavy-Duty Steering Linkage Applications
• Complete Fab Series® Rod End Forging
• Heavy-Duty E-Coated Forged Steel Rod Ends
• RH Rod Threads for Adjustment
• Included in Fab Series® Tie Rod Box Kit for Jeep Wrangler JK
• Included in Fab Series® Tie Rod Box Kit for Jeep Wrangler JL/JT
FAB SERIES® FORGING SPECIFICATIONS:

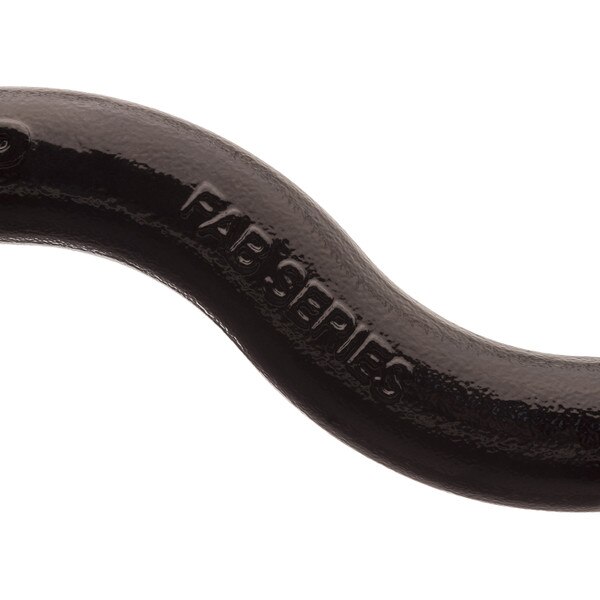

• Bent Forging with 12.070" Total Length
• Forging Offset by 2.0" Total

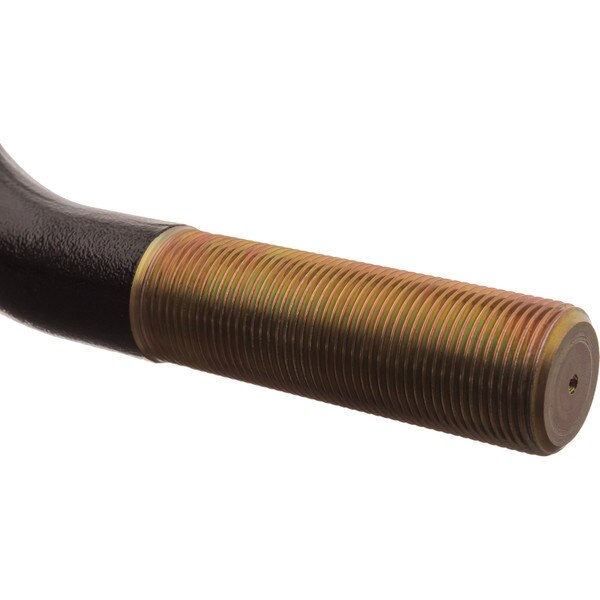

• 1.25"-12 RH Rod Threads

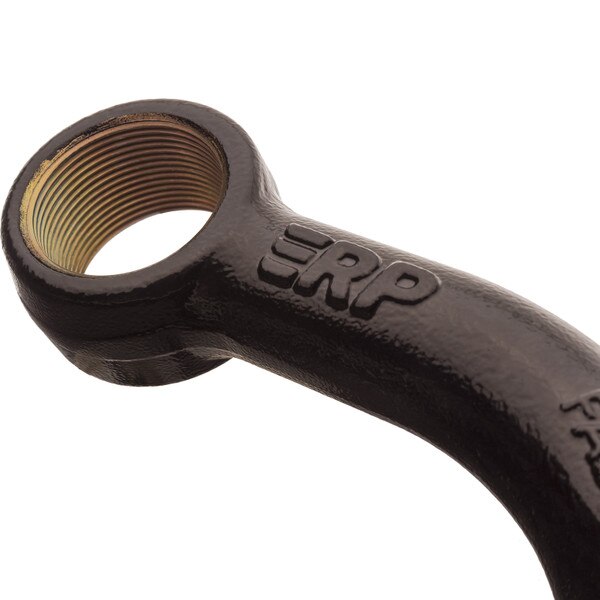

• 1.75"-12 RH Cartridge Threads
• Install Cartridge with 2" 6-Point Impact Socket
• Compatible with Fab Series® Adjusting Sleeve
• Compatible with 1.25"-12 Jam Nut RP65913 RH
• Compatible with 1.25" Locking Belleville Washers RP66639
• Recommended for '07+ Wrangler Steering Knuckle Position
Specifications
| Attribute | Description |
|---|---|
| Thread Size | 1 1/4-12 |
| R/L | R |
| Length | 11.875 |
| Thread Length | 3.719 |
| Bends | 2 |
| Tie Rod Connection | No |
| Cartridge Size | 1 3/4-12 |
| Package Content | 1 Rod End |
