DIAMOND SERIES STRUT ROD BUSHING
Details
Specifications
| Attribute | Description |
|---|---|
| Bushing #1 I.D. | 0.857 |
| Bushing #1 O.D. | 2.502 |
| Bushing #1 Length | 0.996 |
| Bushing #2 I.D. | 0.884 |
| Bushing #2 O.D. | 1.148 |
| Bushing #2 Length | 0.409 |
| Hardware Included | Yes |

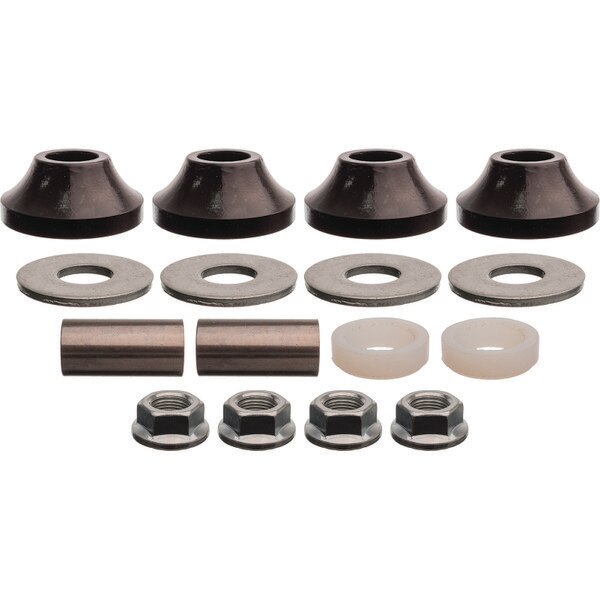

| Package Contents | 6 Bushings, 4 Washers, 2 Sleeves, 2 Lock Nuts |
Applications
| Year | Make | Model | Location |
|---|---|---|---|
| 1961 | Cadillac | Commercial Chassis |
|
| 1962 | Cadillac | Commercial Chassis |
|
| 1963 | Cadillac | Commercial Chassis |
|
| 1964 | Cadillac | Commercial Chassis |
|
| 1961 | Cadillac | DeVille |
|
| 1962 | Cadillac | DeVille |
|
| 1963 | Cadillac | DeVille |
|
| 1964 | Cadillac | DeVille |
|
| 1961 | Cadillac | Eldorado |
|
| 1962 | Cadillac | Eldorado |
|
| 1963 | Cadillac | Eldorado |
|
| 1964 | Cadillac | Eldorado |
|
| 1961 | Cadillac | Series 60 Fleetwood |
|
| 1962 | Cadillac | Series 60 Fleetwood |
|
| 1963 | Cadillac | Series 60 Fleetwood |
|
| 1964 | Cadillac | Series 60 Fleetwood |
|
| 1961 | Cadillac | Series 62 |
|
| 1962 | Cadillac | Series 62 |
|
| 1963 | Cadillac | Series 62 |
|
| 1964 | Cadillac | Series 62 |
|
| 1961 | Cadillac | Series 75 Fleetwood |
|
| 1962 | Cadillac | Series 75 Fleetwood |
|
| 1963 | Cadillac | Series 75 Fleetwood |
|
| 1964 | Cadillac | Series 75 Fleetwood |
|
