BALL JOINT
Details
1 Each, 2 Per Vehicle.
- Fits Plymouth and Chrysler Prowlers
- Heavy Duty
- Steel on Steel Design
- Full Ball Stud
- No Nylon Sleeves or Reinforcements
- Resistant to Premature Wear
- Greaseable
- Includes Dust Boot and Grease Fitting for Simple Maintenance
- OE Fitment for Easy Installation

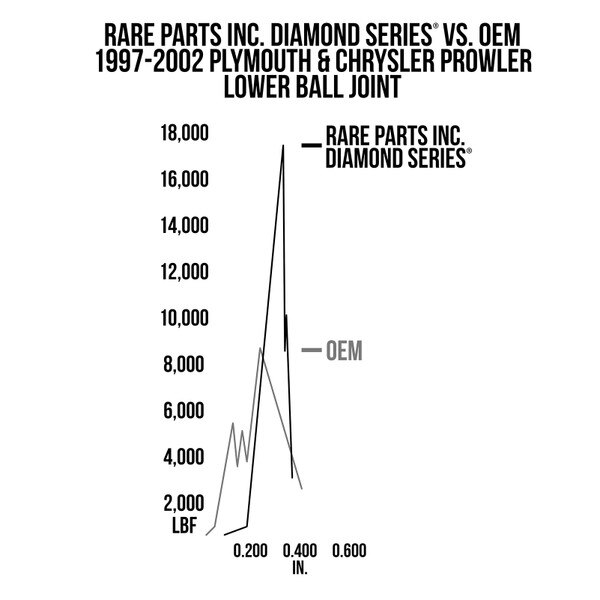

- OEM Pullout Test failed at 8,203 lbf
- Rare Parts Pullout Test failed at over 17,000 lbf
Specifications
| Attribute | Description |
|---|---|
| Stud Thread Size | M14-1.50 |
| Stud Type | Threaded |
| Small Dia. of Stud Taper | 0.615 |
| Stud Taper Per Ft. | 1.5 in/ft |
| Ball Joint Attachment Type | Press In |
| Number of Bolts | 0 |
| Thread in Diameter | N/A |
| Press in Diameter | 1.538 |

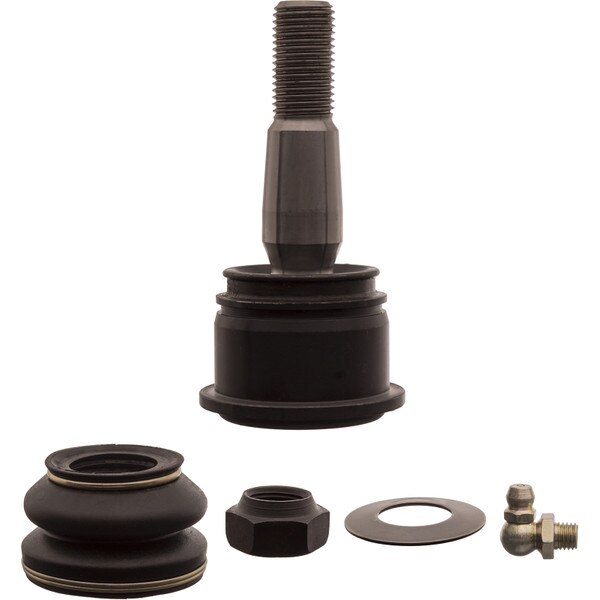

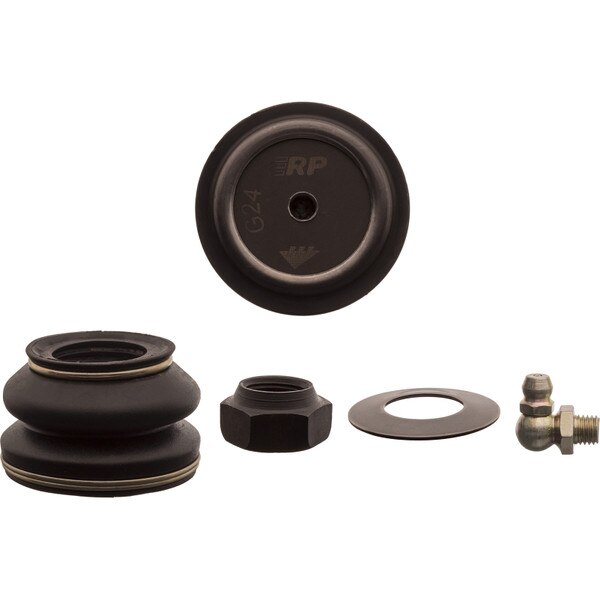

| Package Contents | 1 Ball Joint, 1 Dust Boot, 1 Lock Nut, 1 Washer, 1 Grease Fitting |
Applications
| Year | Make | Model | Location |
|---|---|---|---|
| 2001 | Chrysler | Prowler |
|
| 2002 | Chrysler | Prowler |
|
| 1997 | Plymouth | Prowler |
|
| 1999 | Plymouth | Prowler |
|
| 2000 | Plymouth | Prowler |
|
| 2001 | Plymouth | Prowler |
|
